Shot Blasting Machine

Shot Blasting Machine Manufacturers in India often use the term shot blasting to define various processes such as Abrasive Blasting, Grit Blasting, Shot peening, and Media Blasting. A shot blasting machine removes a layer of deposits and impurities from the surface of metal and steel items using

View Detail
We are the best manufacturer of
shot blasting machine
We also the manufacturer of shot blasting room, hanger type shot blasting
machine, pipe shot blasting machine etc.

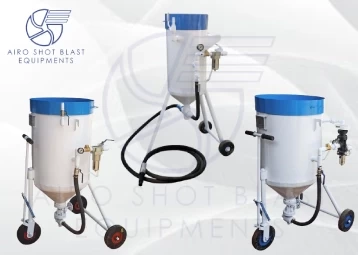

Shot Blasting Machine

Price Range: ₹ 40 K - 5 Lakh
Abrasive Tank Capacity
150 Kg – 1000 Kg
Material Type
Mild steel
Machine Type
Portable

Pipe Shot Blasting Machine

Price Range: ₹ 4Lakh - 80Lakh
H.P. of blast wheel
100HP X 2Nos.
R.P.M. of the blast wheel
1850
Approx shot flow rate
700 kg/ min

Internal Pipe Blasting Machine

Price Range: ₹ 45 K - 5 Lakh
Material
Mild Steel
Nozzle size
Variable according to the requirement
Nozzle size
70mm to 300mm

Diabola Shot Blasting Machine

Price Range: ₹ 8Lakh - 10Lakh
Blast Wheel
1
Wheel Size
19.5x 2.5
Shot Flow Rate (Ton/Wheel/Hour)
8

Cylinder Shot Blasting Machine

Price Range: ₹ 8Lakh - 20Lakh
Size of blast wheel
19 ½” X 2 ½”
No of blast wheel
1-2
Power of blast wheel
15HP

Rotary Barrel Shot Blasting Machine

Price Range: ₹ 4 Lakh - 20 Lakh
Machine Type
Wheel Blasting
Material
Mild Steel
Abrasive Feed
Barrel Type

We are one of the leading manufacturers, and suppliers of shot blasting machines and we provide high-quality sand blasting cabinet at a low price as compared to others. We are all types of shot blasting machine suppliers like portable shot blasting machine, airless shot blasting machine, automatic blasting machine, and small shot blasting machine and also provide shot blasting chamber, shot blast booth, shot blasting nozzle, shot blast compressor, etc at an affordable price in India.

View Detail

ISO Certified Company

Manufacturer & Exporter

Provide Quality Products

Trustseal Verified

We are the best manufacturer of
shot blasting machine
We also the manufacturer of shot blasting room, hanger type shot blasting
machine, pipe shot blasting machine etc.
February 26, 2024

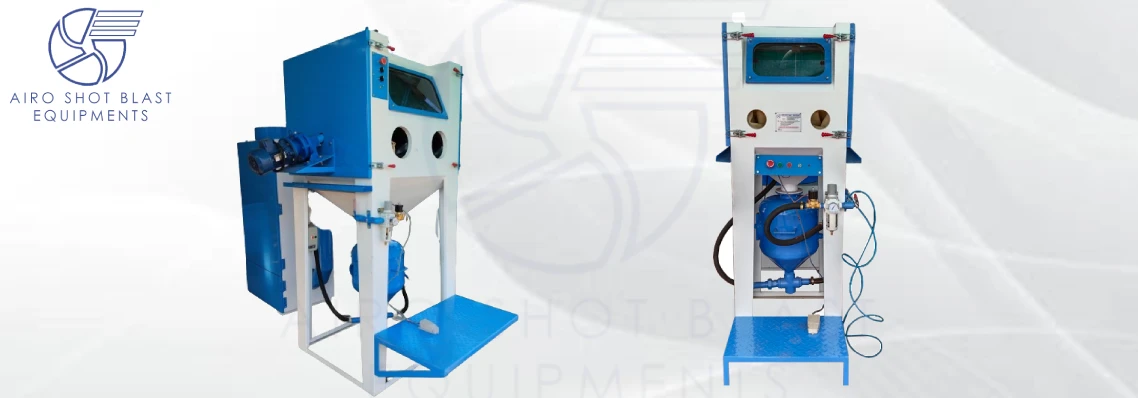

Pressure Blasting Cabinet

A pressure blasting cabinet is an advanced instrument used in the aerospace, transportation, and metalwork industry sectors related to material pretreatment and completion. The cabinet's interior performs as a sealed enclosure which includes gloves embedded in the exterior walls.

April 20, 2023

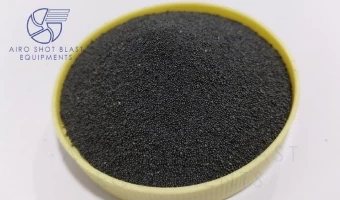

What is the Size of Steel Shot for Shot Blasting?

Steel shot sizes are a standardized system for categorizing the size of steel pellets used for various applications, such as in shot blasting or shotgun ammunition. The size of a steel shot is determined by its diameter, measured in millimeters or inches.

April 20, 2023

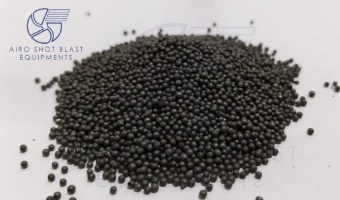

Steel Shot for Shot Blasting Machine

Steel shot is a popular abrasive material used in shot blasting machines. Shot blasting is a surface preparation technique used to clean, strengthen, and polish metal and other surfaces.

April 19, 2023

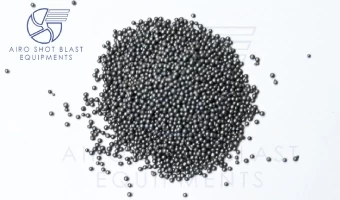

What is Steel Shot?

Steel shot is a type of abrasive material that is used for surface preparation and cleaning in various industrial applications. It is made by melting high-quality steel and then atomizing it into small, spherical particles. The resulting steel shot is then screened to ensure that it meets the

February 10, 2023

Safety Equipment for Shot Blasting

Many different types of equipment connected to health, control, and safety hazards were included in the safety equipment for shot blasting. Blast cleaning activities can result in a wide range of dangerous scenarios and settings.

February 10, 2023

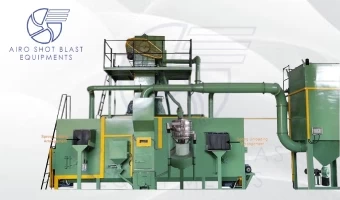

What is shot peening?

Shot Peening is a process in which a surface is bombarded with small, spherical shot or bead-like media, typically made of steel, ceramic, or glass, to improve its resistance to fatigue and stress. The shot impacts the surface of the material, causing plastic deformation in the material and compress

February 10, 2023

Complete Guide To Shot Blasting Machine

Shot blasting is a surface preparation process that involves propelling small steel or ceramic balls at high velocity against a surface to remove surface contaminants, scale, rust, and other impurities.

February 09, 2023

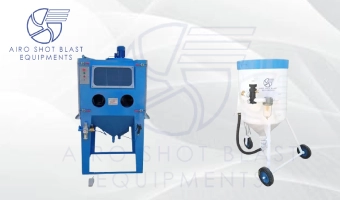

Shot Blasting Machine Parts

It's crucial to have a thorough knowledge of the sandblasting process and equipment in order to understand the function each shot blasting machine parts performs during the shot blasting process.

December 20, 2022

Shot Blasting Machine Spare Parts

There are numerous sorts of spare parts for shot blasting machines. The use of shot blasting equipment varies by industry. Since the materials used to make the spare parts for shot blasting machines vary, each spare has a unique life history. If the shot blasting machine is used continually, spare

What is Shot Blasting Machine?

A Shot blasting machine is a type of surface finishing equipment that uses high-speed abrasive particles to remove impurities, scale, rust, or other surface contaminants. This results in a clean and uniform surface that is free of defects, which can then be painted, coated, or treated as needed.

Shot Blasting Process

The shot blasting process is a surface preparation method that uses high-speed abrasive particles to remove impurities, scale, rust, or other contaminants from a metal surface. The process can also be used to improve the surface finish and prepare the surface for further processing, such as painting or coating.

There are several types of shot blasting machines, including:

  • Portable shot blasting machine: A portable shot blasting machine is a compact, lightweight, and mobile version of a shot blasting machine. This type of machine is designed to be easily transported to the location where the shot blasting is needed, making it an ideal choice for on-site cleaning and surface preparation of metal components.

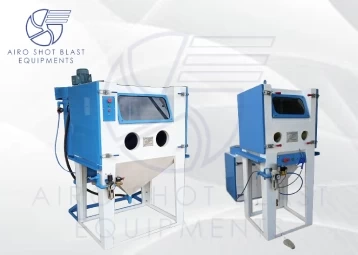

  • Cabinet-type shot blasting machine: A cabinet type shot blasting machine is a type of shot blasting equipment that is enclosed within a cabinet. The cabinet protects the operator from the abrasive media and helps to contain the blast cleaning process, reducing the amount of dust and debris generated during the shot blasting process. In a shot blasting cabinet, the workpiece is placed inside the cabinet and is exposed to the abrasive media through openings in the cabinet.
  • Spinner Hanger Shot Blasting Machine: Spinner Hanger Shot Blasting Machine is suitable for large and heavy components.

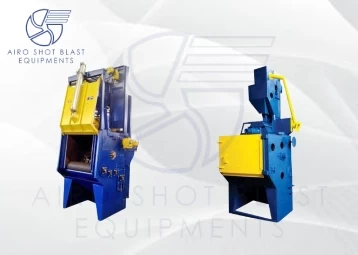

  • Tumble Shot Blasting Machine: tumblast shot blasting machine is used for small and delicate parts.
  • Table Shot Blasting Machine: table-type shot blasting machine designed for flat and porous components.

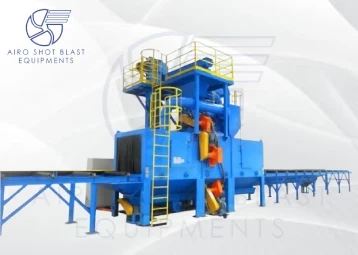

  • Roller Conveyor Shot Blasting Machine: Roller Conveyor Shot Blasting Machine is used for continuous surface treatment of long and flat components.
  • Rotary Barrel Shot Blasting Machine: it is used for small parts with uniform shapes and sizes.
  • Airless Shot Blasting Machine: Airless shot blasting machine suitable for sensitive surfaces that cannot be damaged by high-pressure blasting.
  • Continuous Shot Blasting Machine: Continuous Shot Blasting Machine is used for high production rate with continuous blasting of parts.
  • Hook Shot Blasting Machine: suitable for cleaning and finishing large and heavy components.
  • Wire Mesh Belt Shot Blasting Machine: it is used for continuous surface treatment of flat and porous components.

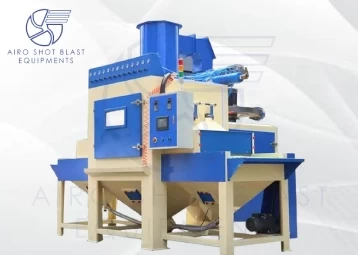

  • Automatic shot blasting machine: Automatic shot blasting machines are widely used in mass production processes and are designed to handle high volumes of parts. They are commonly used for surface preparation, rust removal, paint stripping, and polishing in industries such as automotive, aerospace, and metal fabrication. Automatic shot blasting machine is known for their speed, efficiency, and consistency, making them a popular choice for high-volume production environments.

Shot Blasting Equipment

Shot blasting equipment refers to the machinery used to perform the shot blasting process. Shot blasting equipment typically consists of several key components, including:

  1. Abrasive Blasting Wheel: This component propels the abrasive media at high speed toward the surface of the workpiece. The abrasive blasting wheel is typically driven by an electric motor or air compressor.

  2. Abrasive Media: The abrasive media is the material that is projected onto the surface of the workpiece. Common types of abrasive media include steel shot, steel grit, and stainless-steel shot.

  3. Blast Cabinet or Blast Room: The blast cabinet or blast room is the enclosed space where the shot blasting process takes place. The blast cabinet or shot blasting room helps to contain the blasting process and protects the operator from the abrasive media.

  4. Conveyor System: The conveyor system transports the workpiece through the shot blasting machine. The conveyor system can be manual or automated, depending on the type of shot blasting equipment.

  5. Dust Collection System: This component collects and removes the debris generated during the shot blasting process. A dust collection system typically consists of a dust collector and a filtration system.

FAQ
What is shot blasting?

Shot blasting is a method of cleaning, smoothing, or preparing surfaces using high-pressure streams of abrasive materials, such as steel shot or grit.

What are some common uses for shot blasting?

Shot blasting is commonly used in the automotive, aerospace, and construction industries for cleaning and preparing surfaces prior to painting or coating. It can also be used for removing rust, scale, and other surface contaminants from metal parts and structures.

What types of equipment are used for shot blasting?

There are several types of shot blasting equipment available, including wheel blast machines, air blast machines, and blast rooms. The type of equipment used will depend on the size and shape of the parts being processed, as well as the desired level of automation.

How does shot blasting compare to sandblasting?

Both shot blasting and sandblasting use abrasive materials to clean or prepare surfaces, but there are some key differences. Shot blasting typically uses small, round pellets of abrasive material, while sandblasting uses a fine powder or granular abrasive. Shot blasting is generally considered to be less aggressive than sandblasting and is better suited for delicate or intricate parts.

Can shot blasting be used on non-metallic surfaces?

Yes, shot blasting can be used to clean or prepare non-metallic surfaces such as concrete or wood. However, the type of abrasive media used will be different and will be chosen based on the material and the level of cleaning or smoothing required.

How to choose the right shot blasting media?

The type of shot blasting media you choose will depend on the surface you are cleaning or preparing and the level of cleaning or smoothing you require. Steel shot is a common choice for removing rust and surface contaminants from metal parts, while steel grit is often used for preparing surfaces for painting or coating. Other types of media, such as aluminum oxide or silicon carbide, may be used for more specialized applications.
