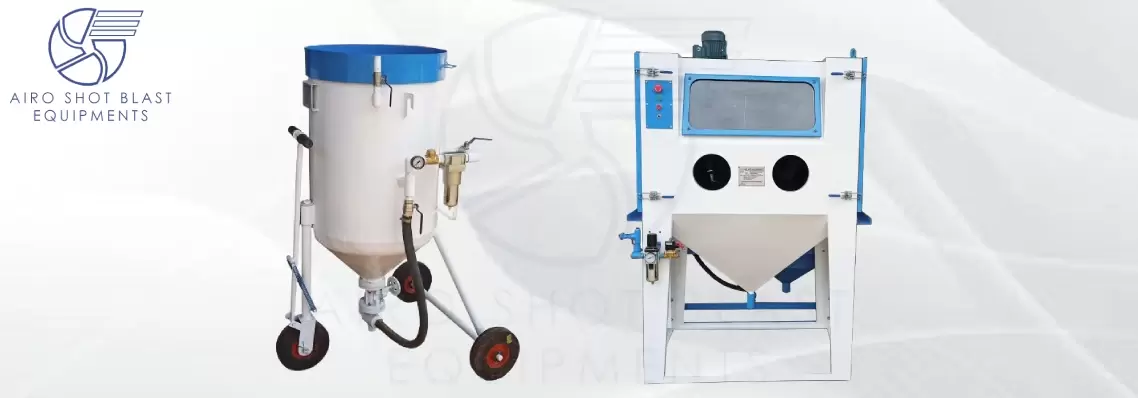

The several types of shot blasting machines are displayed below, each of which can be identified by its loading mechanism or the arrangement of its pieces inside the machine for shot blasting. All of the shot machines can still be utilized in various industrial fields.
For heavy fabrication companies, a portable shot blasting machine is incredibly cost-effective & helpful. The size of these large items makes shot blasting necessary before painting, so every time we must move these large products into a small blasting area after welding small components or doing some rework on small attachments, the cost of material handling increases. After producing a portable sand blasting machine, we may locally blast the small components that we welded after the initial blasting process. Since this can be done on the same site as manufacturing, we won't have to move the components once more into the cramped confines of the blasting room. With the use of a portable shot blasting machine, blasting can be done simultaneously with painting at the same location.
The pieces to be cleaned are placed on a rotating table in a table shot blasting machine. Depending on the production and weight of the components that need to be processed, we have equipment with various table diameters. Both table machines that can be fitted with a drum for large items and equipment with two tables for simultaneous loading and unloading are available.
The parts are tumbled in the Tumblast shot blasting machine to clean them. The process type used means that this system can meet a variety of needs. It is often suggested for any component that can be tumbled because of its shape and material. All of our tumble machines come with a range of dosing, loading, and unloading methods and may be easily incorporated into ongoing manufacturing processes.
Spinner hangers are a pitless cabinet system for deflashing, deburring, and cleaning metal forgings and moulds. These machines are typically chosen for parts whose design prevents them from passing through a tumbler, but they can also be equipped with a robot to work in an automated manufacturing line.
This automated shot-blasting equipment can handle a wide range of materials, including plates, angles, pipes, and post-fab structural components. They are employed by a number of sectors, including shipbuilding, steel fabrication, and machine construction. Some Roller conveyor shot blasting machine systems can be equipped with spray painting equipment so that components can be coated right away after processing. The self-contained shot-blasting chamber is equipped with rollers that parts are placed onto to start their journey there. Once there, four parallel rotary blasters two above and two below treat the components in order to completely cover them. Components leave the machine at the other end for collection after processing is finished.
The pipe cleaning shot blasting machine (inner & outer) are available in different sizes for diverse industries, such as oil & gas, steel stocks, and the food industry, and are appropriate for the surface treatment of internal pipe and associated goods.
The plating cleaning shot blasting machine consists of a number of centrifugal blast wheels, each of which has its own motor and offers thorough cleaning. The tasks were kept in place on a suitable conveying system with a variable velocity that could be changed in response to the working environment. To remove media abrasive material that is fired by numerous wheels to provide a uniform finish from the project, it is placed in the blast cabinet. The completely shot-blasted components protrude out of the cabinet's exit. These machines include systems for recovering and cleaning abrasive media, a dust collector, a control panel, and a liner made of rubber or another material to shield the machine from wear. For shot blasting cleaning of pre-designed pieces for buildings, vehicle structures, and other comparable purposes, use the plate shot blasting equipment.
In order to finish or texture the stone slab, the stone shot blasting machine contains numerous blast wheel stations. These blast wheels were primarily developed for stone texturing and finishing purposes. On a dedicated conveyor for the stone blasting equipment, the stone slabs are moved. Stone, granite, or marble slabs are transported by this conveyor and processed in the work cabinet. By modifying the conveyor speed, blast wheel speed shot size, and other factors, we may get the stone slab to have the texture or finish we want. Specially designed blanks may be used on Stone in order to achieve specific effects on its surface.
For More details about the sand blasting machine visit our article.
Sand blasting cabinets are a different kind of sand blasting machine that is a closed or enclosed version of the machine with a cabinet. The recycling of abrasive media also takes place in that restricted area where pollutants are blasting. Additionally, there are a number of other tasks that are incorporated, such as dust collection, recycling, and cleaning. An opening gate from which the blasting material or blasting surface is retained inside the sand blasting cabinet is present in this system for sand blasting, as well as a window through which the operator can observe the process.
Suction Blaster (also known as a cabinet type shot blasting machine) and Pressure Blaster (also known as a cabinet type shot blasting machine) are the two different types of cabinet type shot blasting equipment. Let's take a closer look at each machine.
