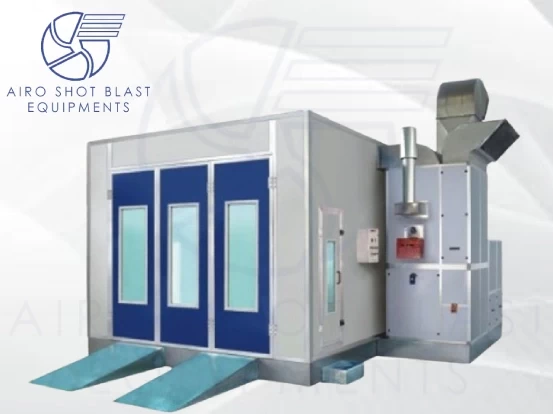

Dry Paint Booth System

• A dry-type paint booth is a sizable, enclosed space outfitted with exhaust fans and filters to facilitate safer, cleaner commercial spray painting.
• By changing air pressure to expel contaminants from the container and clear the air, it improves results.
• By using water as a filtration medium, it offers an incredibly effective way to remove paint particles from the expelled air.

We are offering our clients a wide range of Dry Paint Booth System. Which involve Side and Down Draft Paint Booths. The highest efficiency in a Dry-type Painting Booth is forever attained when the capacity, size, and other terms are most suited to the kind of work to be performed. The following factors are important when selecting the most appropriate booth for a special coating component. Size of the article to be coated. Rate of production (i.e. Paint Consumption).Product handling process.

 We offer a that is recommended where the paint overspray volumes are low at job coating. This booth consists of a sheet metal enclosure divided into two sections by a divided wall that houses the paint arrestor filters. The front section forms the working chamber while the near section houses the exhaust blowers which ensure the proper air velocity in the working chamber as also the exhaust of the inflammable solvent vapors’. The heavier paint particles are deposited on the filter. Sand Blasting Machine The deposited paint sludge is to be removed periodically. All booths are available in the Batch / Conveyorised and Pressurization option.

Dry Paint Booth System in India

Manufacturing is a very large field, from products like manufacturing small pencils to large airplanes; everywhere painting plays a very important role. A good paint finish plays the most important role as the first step for any product acceptance criteria. Air The Shot Blasting has developed numerous, Dry paint booth system some of which are standardized and others are as per customer requirements of the customers. The word dry spray booth itself mentions that there is no involvement of water in the spray booth for any purpose, thus making it free from water.

Features of Dry Painting Booth

• Over sprayed paint is sucked in by the blower through the Paint Arrest filter or metallic filter arrester.
• Dry arresting of paint without water and chemicals.
• Even suction over the entire height of the booth.
• Light maintenance Ideal use for all types of paint applications

Type of Dry Painting Booth

• Downdraft Paint Booth
• Side Draft Paint Booth

Downdraft Paint Booth

We Offer’s Dry Paint Booth System this booth was developed to provide fast availability and simple installation. The Pit Downdraft spray booths are popular with automotive applications as they bring air from ceiling intake filters and disperse clean, fresh air from the top of the booth to the bottom. The filtered air is drawn down and across the product through exhaust filters in the pit located on the floor. This provides effective overspray control that reduces prep time and also provides a much healthier workplace environment. We provide Downdraft spray booth are offered in a number of sizes and configurations such as the pressurized, non-pressurized, solid back, and drive-through designs.

Side draft Paint Booth

We Offer’s Side that allows for the rapid removal and containment of paint or coating overspray. Incoming air is drawn into the side draft paint booth through the filtered upper plenum and from door filters. Air is then drawn down through the ceiling and after traveling over the piece being painted, exits the Paint Booth System through exhaust filters located on the bottom of the booth’s sidewalls. These contaminants are filtered and exhausted to the outdoors. Paint, sand, weld, or perform any operation that calls for exhaust in a well-lit and enclosed space. No limitation of spraying paint as this side draft paint Spray room is a fully enclosed work area that can be used for unlimited spraying.

Dry Paint Spray Booth in India for sale in India & Exporter of Sand Blasting Machine, Pipe Shot Blasting Machine, Sand Blasting cabinet, Shot Blasting room, sand blasting nozzles, Shot blasting machine in India at a low price Jodhpur, Rajasthan, India for sale with the best quality.
